Detailed Description
Reference number
Application

Starter solenoids

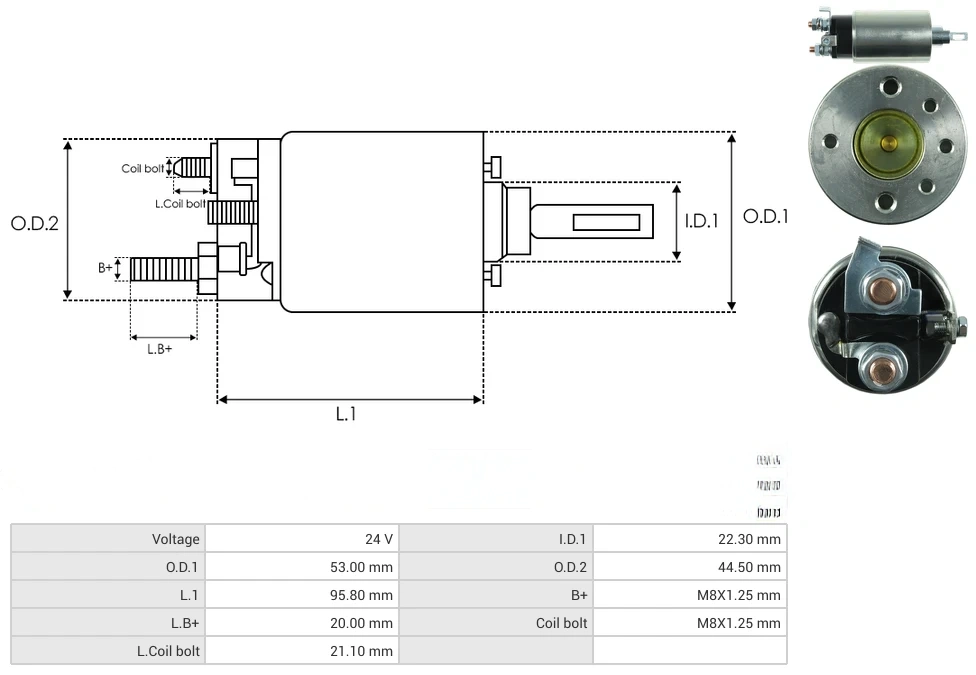

Voltage [ V ]	24
I.D.1 [ mm ]	22.30
O.D.1 [ mm ]	53.00
O.D.2 [ mm ]	44.50
L.1 [ mm ]	95.80
B+ [ mm ]	M8X1.25
L.B+ [ mm ]	20.00
Coil bolt [ mm ]	M8X1.25
L.Coil bolt [ mm ]	21.10

UD13090SSAS-PL
234868CARGO
F032234868CARGO
2240-4701HITACHI
8970256770ISUZU
SOL3088ELECTROLOG
SND1771AWOODAUTO

Reference nb	Producer
S25163A	HITACHI
S25163B	HITACHI
S25163E	HITACHI
