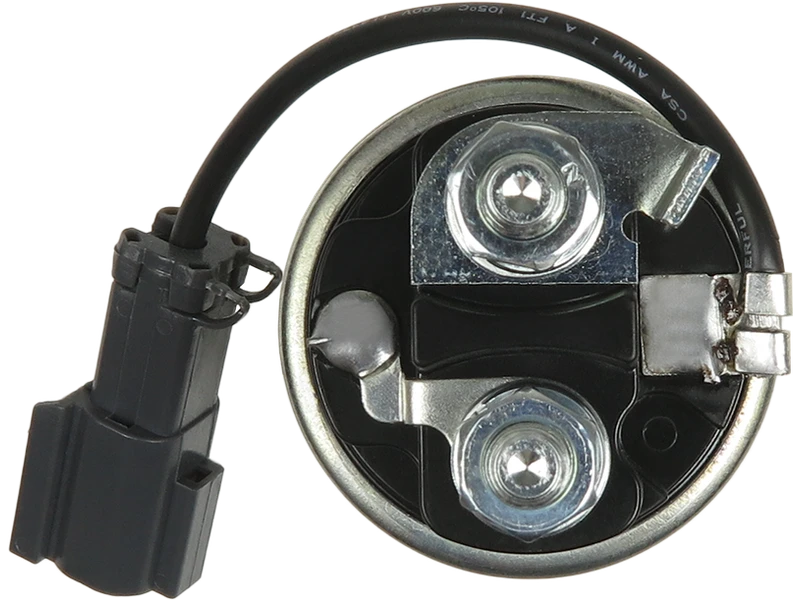

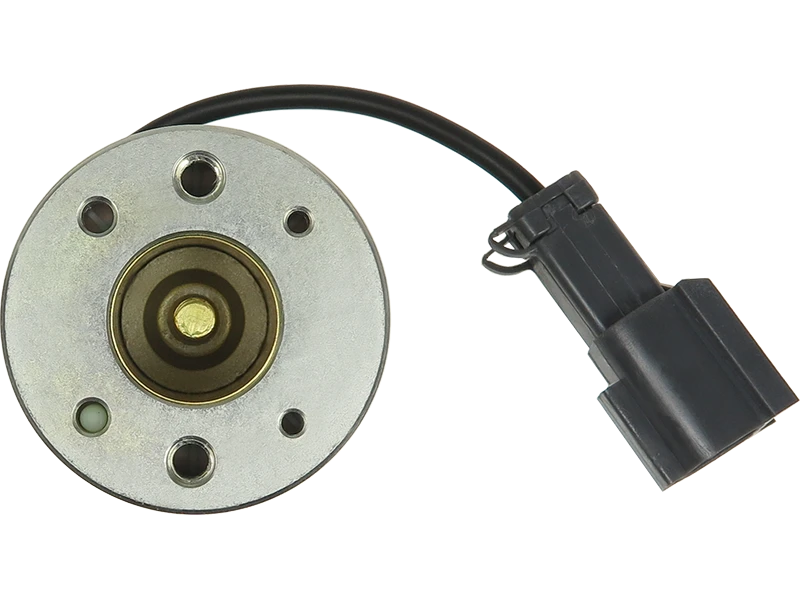

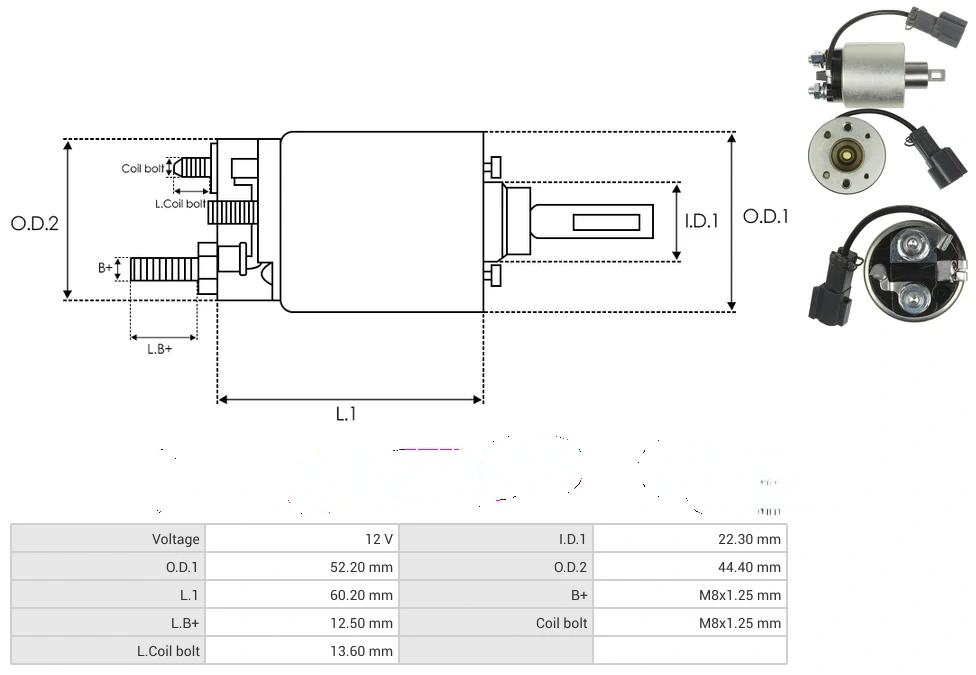

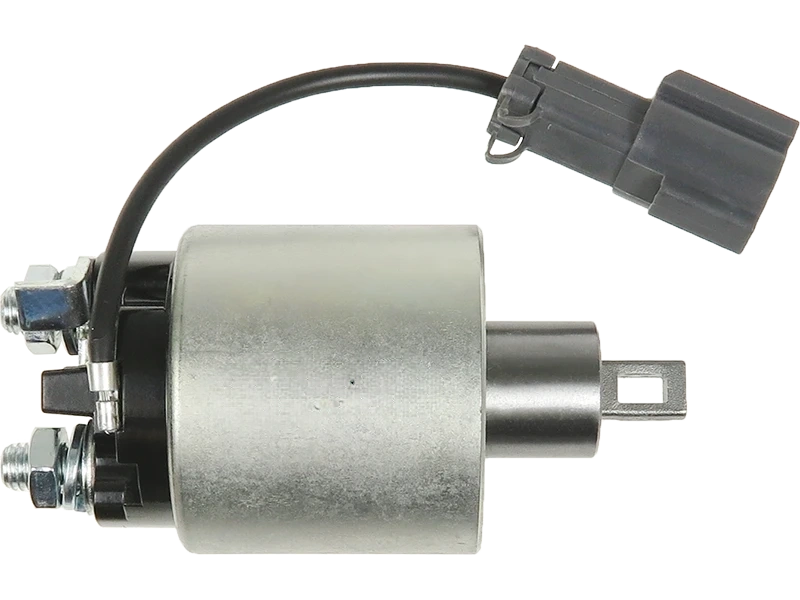

Starter solenoids Voltage [ V ] 12 I.D.1 [ mm ] 22.30 O.D.1 [ mm ] 52.20 O.D.2 [ mm ] 44.40 L.1 [ mm ] 60.20 B+ [ mm ] M8x1.25 L.B+ [ mm ] 12.50 Coil bolt [ mm ] M8x1.25 L.Coil bolt [ mm ] 13.60
UD00300SSAS-PL UD14458SS(ZM)AS-PL UD16242SSAS-PL 139784CARGO F032139784CARGO 2114-17612HITACHI 2114-27608HITACHI 2114-77506HITACHI 2114-77507HITACHI 2114-77607HITACHI 2114-97604HITACHI 2114-T7106HITACHI 2114-T7160HITACHI 2114-T7306HITACHI 940113050445MAGNETI MARELLI AME0445MAGNETI MARELLI 23343-80W00NISSAN 23343-80W01NISSAN ZM2719ZM CQ2030624CQ SOL3074ELECTROLOG 227194ERA SSH5784KRAUF SSH6784KRAUF SSH9784KRAUF 1016831POWERMAX 81016831POWERMAX 66-8135WAI / TRANSPO SND12192WOODAUTO
Reference nb Producer S114-701A HITACHI S114-701C HITACHI S114-806A HITACHI
