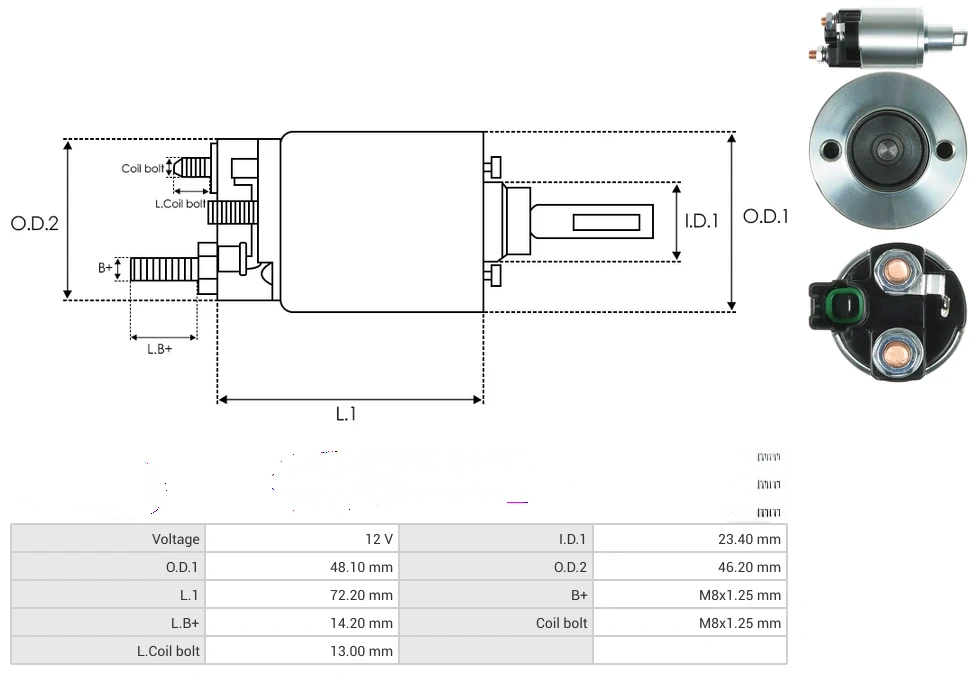

Starter solenoids Voltage [ V ] 12 I.D.1 [ mm ] 23.40 O.D.1 [ mm ] 48.10 O.D.2 [ mm ] 46.20 L.1 [ mm ] 72.20 B+ [ mm ] M8x1.25 L.B+ [ mm ] 14.20 Coil bolt [ mm ] M8x1.25 L.Coil bolt [ mm ] 13.00
UD16486SSAS-PL F032332477BOSCH 332477CARGO 028099-9791DENSO 153400-0000DENSO 153400-8413DENSO 28226-22060TOYOTA 28226-22061TOYOTA 28226-37120TOYOTA 28226-38030TOYOTA 425ZM ZM425ZM 6646-16102DIXIE SOL6086ELECTROLOG SSN8225KRAUF 054.001.117.056PSH 054.001.117.590PSH 66-8225WAI / TRANSPO
Reference nb Producer 4280000023 DENSO 4280000024 DENSO 4280000340 DENSO 4280000341 DENSO 4280001311 DENSO 4280002330 DENSO 4280002340 DENSO 9642809002 DENSO DSN936 DENSO S6037 AS-PL S6177 AS-PL
