LY-ND111002

Category :
DENSO电装
Browse number : ...
Release time : 2025-10-06

Message

Detailed Description
Reference number
Application

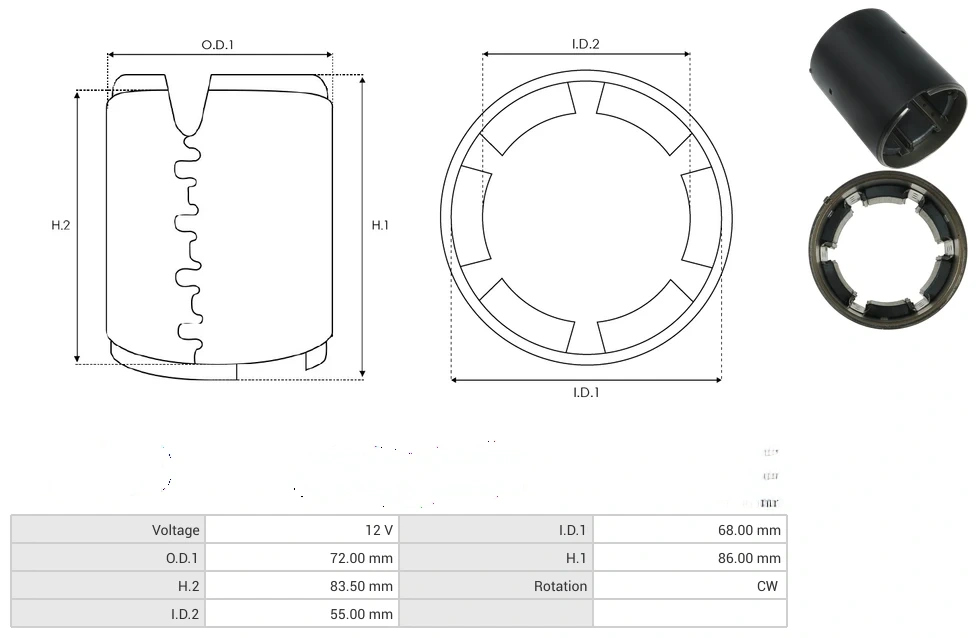

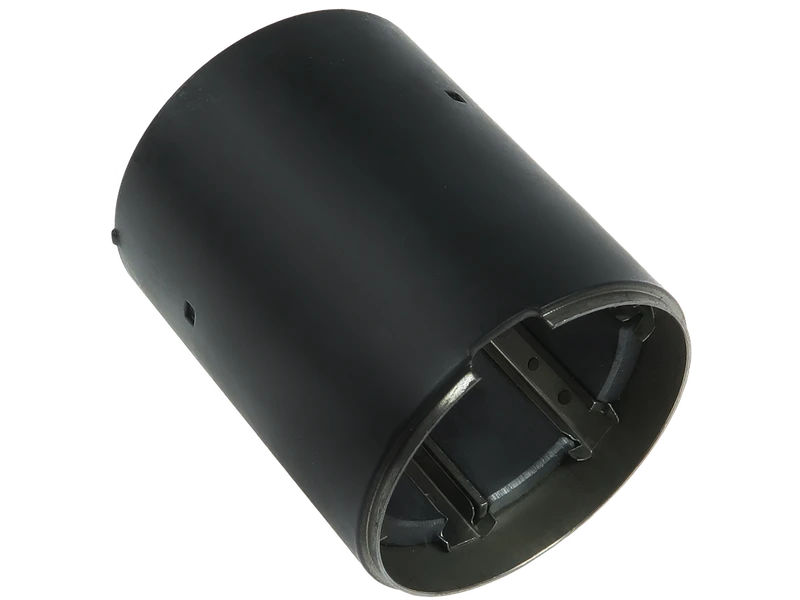

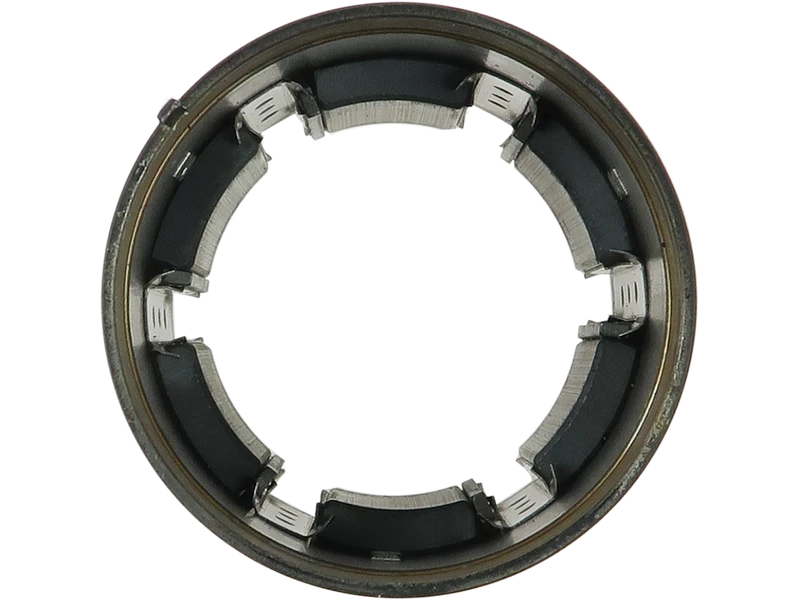

Starter yokes with magnets
Voltage [ V ]	12
I.D.1 [ mm ]	68.00
O.D.1 [ mm ]	72.00
H.1 [ mm ]	86.00
H.2 [ mm ]	83.50
Rotation	CW
I.D.2 [ mm ]	55.00

UD49717SFAS-PL
28120-28040TOYOTA
28120-28060TOYOTA
SFN4419KRAUF

Reference nb	Producer
4280000023	DENSO
4280000024	DENSO
4280000152	DENSO
4280000340	DENSO
4280000341	DENSO
4280001240	DENSO
4280001261	DENSO
4380000660	DENSO
4380002740	DENSO
S6311S	AS-PL

url : https://wz-ly.com/product/668.html

Keywords :

Previous : LY-ND111001
Next : LY-ND111003
