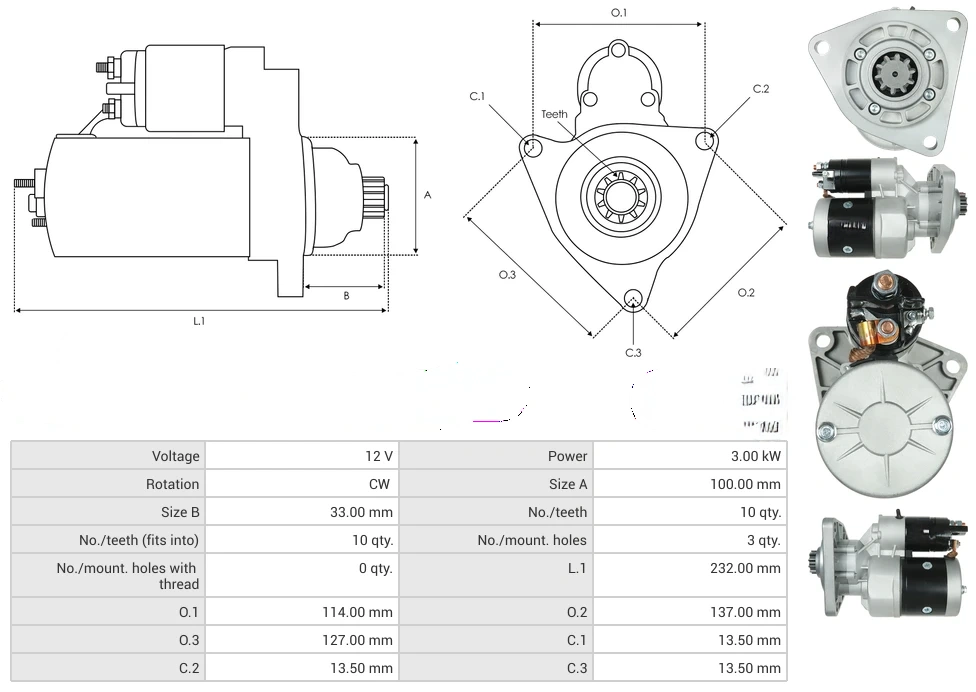

Starters Voltage [ V ] 12 Power [ kW ] 3.00 Rotation CW Size A [ mm ] 100.00 Size B [ mm ] 33.00 No./teeth [ qty. ] 10 No./teeth (fits into) [ qty. ] 10 No./mount. holes [ qty. ] 3 No./mount. holes with thread [ qty. ] 0 L.1 [ mm ] 232.00 O.1 [ mm ] 114.00 O.2 [ mm ] 137.00 O.3 [ mm ] 127.00 C.1 [ mm ] 13.50 C.2 [ mm ] 13.50 C.3 [ mm ] 13.50
9142783MAGNETONList 123708002JUMZList STG2783KRAUF
Brand Model Type Year JUMZ 6KM 4.7 D-65 01.1970 - JUMZ 6KL 4.7 D-65 01.1970 -
