LY-LD300002

  • Detailed Description
  • Reference number
  • Application
Starters

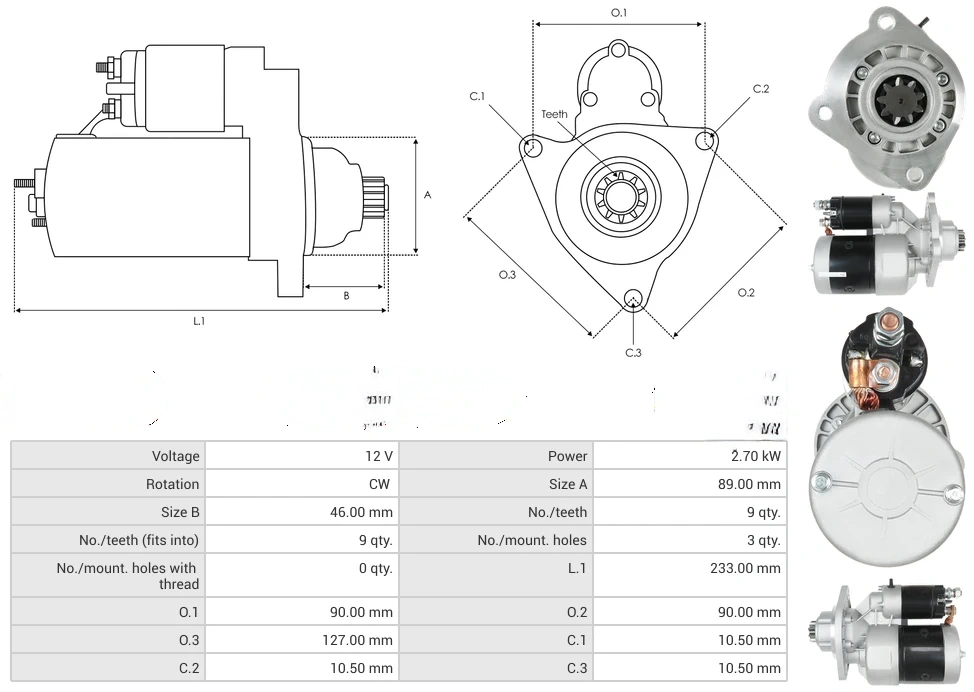

Voltage [ V ]	12
Power [ kW ]	2.70
Rotation	CW
Size A [ mm ]	89.00
Size B [ mm ]	46.00
No./teeth [ qty. ]	9
No./teeth (fits into) [ qty. ]	9
No./mount. holes [ qty. ]	3
No./mount. holes with thread [ qty. ]	0
L.1 [ mm ]	233.00
O.1 [ mm ]	90.00
O.2 [ mm ]	90.00
O.3 [ mm ]	127.00
C.1 [ mm ]	10.50
C.2 [ mm ]	10.50
C.3 [ mm ]	10.50
S9050AS-PLList
2.62.034DAEWOO
262034DAEWOO
806003000.0ELMOT
806008000.0ELMOT
856.000.0ELMOTList
863.000.1ELMOT
R11-03ELMOT
R11-08ELMOT
R11CELMOTList
R11GAELMOT
443115142723MAGNETONList
443115144723MAGNETONList
9142723MAGNETONList
22.3005MCQ
SG9010GHIBAUDI
STG3723KRAUF
230.002.093.110PSH
S131.993PSH
011-001-000420RREMANTE
RNL142723RNL
MGN9142723WOODAUTO
WOOSPEX4398WOODAUTO
WOOSTR31003WOODAUTO
Brand	Model	Type	Year
DAEWOO	Lublin 2.4	4C90	01.1999 - 01.0001
DAEWOO	Lublin 2.4	4CT90	01.1999 -
DAEWOO	Honker 2.4	4CT90-1	-
GAZ	Gazelle 2.4	4CT90	-
LDV	Convoy 2.4	4CT90
