Product Category

LY-BO250002

Category :
BOSCH TRUCK STARTER （博世卡车起动机）
Browse number : ...
Release time : 2025-10-02

Message

Detailed Description
Reference number
Application

Starters

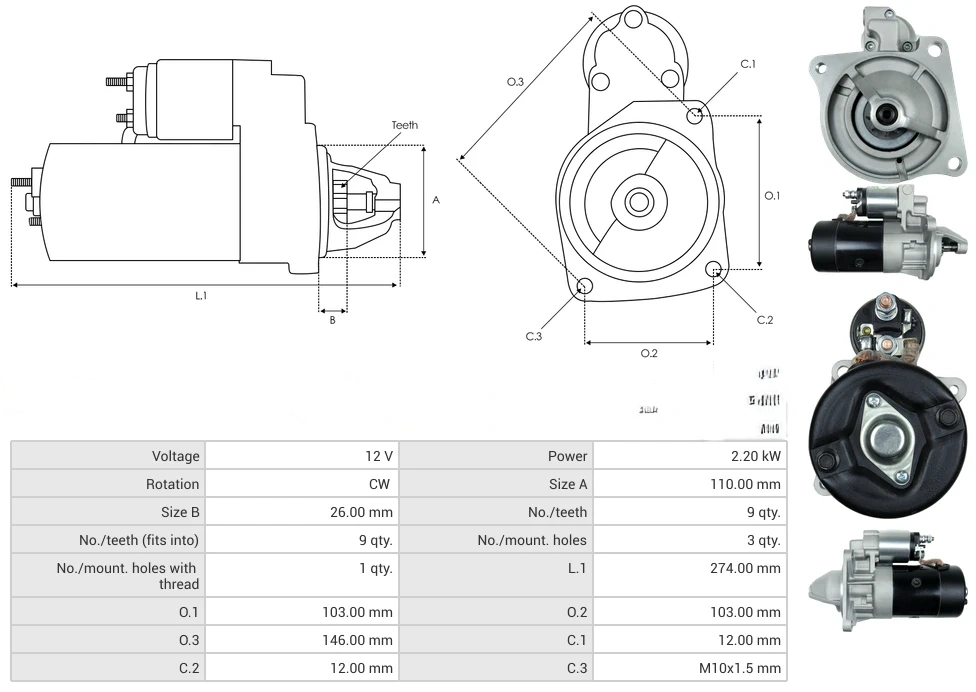

Voltage [ V ]	12
Power [ kW ]	2.20
Rotation	CW
Size A [ mm ]	110.00
Size B [ mm ]	26.00
No./teeth [ qty. ]	9
No./teeth (fits into) [ qty. ]	9
No./mount. holes [ qty. ]	3
No./mount. holes with thread [ qty. ]	1
L.1 [ mm ]	274.00
O.1 [ mm ]	103.00
O.2 [ mm ]	103.00
O.3 [ mm ]	146.00
C.1 [ mm ]	12.00
C.2 [ mm ]	12.00
C.3 [ mm ]	M10x1.5

S0018AS-PLList
UD102202SAS-PL
0001109344BOSCHList
0001218174BOSCHList
0001218774BOSCHList
0001362102BOSCHList
0986017490BOSCH
1986S00738BOSCH
111996CARGO
F032111996CARGO
1516663RDAF
1516714RDAF
1516792RDAF
DRS7490DELCO
4682996FIAT
4711699FIAT
4719664FIAT
4807374FIAT
77028560FIAT
8EA012526-231HELLA
8EA737578-001HELLA
6.7008.1IKA
11.139.248ISKRA / LETRIKA
11.139.445ISKRA / LETRIKA
AZD2146ISKRA / LETRIKA
AZE4144ISKRA / LETRIKA
IS9438ISKRA / LETRIKA
IS9546ISKRA / LETRIKA
106055IVECO
2995140IVECO
42498138IVECO
42498149IVECO
42498505IVECO
42498678IVECO
4856055IVECO
5801408583IVECO
5901408583IVECO
93828721IVECOList
99451753IVECO
04719664KHD
063521093440MAGNETI MARELLI
063522187740MAGNETI MARELLI
063721118010MAGNETI MARELLI
MQS1118MAGNETI MARELLI
MSN2166MAGNETI MARELLI
72535349MAHLE
72735641MAHLE
MS1088MAHLE
MS13MAHLE
35259930PRESTOLITE
M1301PRESTOLITE
201173VALEO
438169VALEOList
458192VALEOList
D7R61VALEOList
PRSL0103EFFE
STRL0103EFFE
AZMT-53-010-1025A.Z. MEISTERTEILE
CGB-27490AINDE
10440720ALANKO
10441089ALANKO
A17490ATL AUTOTECHNIK
AES1238AUTOELECTRO
SBO102AUTOTEAM
SBO102AAUTOTEAM
BST32081BORG & BECK
STA0277RBOVEZ
CST10102ASCASCO
CST10102GSCASCO
CST15235GSCASCO
3881CEVAM
1265026CTR
318070092DRI
11837EAI
STR00311ELECTROLOG
STR1143ELECTROLOG
STR1527ELECTROLOG
25-2185ELSTOCK
220019ERA
1638123980EUROREPAR
11017490EUROTEC
2-0108EXACT
106938FARCOM
FT74201FAST
8817490FRIESEN
SG0067GHIBAUDI
GS109344-AGPARTS
GS109344B-RGPARTS
GS218174B-RGPARTS
SS109344-AGPARTS
SS109344B-RGPARTS
CS1118HC PARTS
3118705HENKEL PARTS
3118706HENKEL PARTS
3118708HENKEL PARTS
3118709HENKEL PARTS
3118710HENKEL PARTS
H5010006HOFFER
H5010361HOFFER
STB1118KRAUF
101118KUHNER
101118BKUHNER
101118VKUHNER
28.1118LAUBER
28.1118MLAUBER
331270LOGISTIK
LRT00138LUCAS
5010006MEAT & DORIA
5010361MEAT & DORIA
8212567POWERMAX
88212567POWERMAX
500.522.093.010PSH
500.522.093.011PSH
500.522.093.018PSH
500.522.093.019PSH
500.522.093.214PSH
500.522.093.215PSH
500.522.093.280PSH
500.522.093.500PSH
500.522.093.608PSH
500.522.093.609PSH
500.522.093.775PSH
S132.754PSH
S144.111PSH
S148.804PSH
20401201BNREAL
20401201OEREAL
20479532OEREAL
RNL109344RNL
RNL1749RNL
120-20213ROBERT'S
STM903ROLLCO
6010102.0SANDO
6010102.1SANDO
6015235.1SANDO
S12BH0045A2SIDAT
S12BH0046SIDAT
S12BH0046A2SIDAT
S12VA0045SIDAT
MAV172350SIOM
MAV3260SIOM
MAV3260ASIOM
IV9002SNRA
SS428SOVEREIGN
STX200984STARDAX
STX200984RSTARDAX
STX210020STARDAX
837ST11STARTCAR
TT15236TESLA
ST00843TMI
004719664UNIC-SIMCA
19794NWAI / TRANSPO
WG2012683WILMINK GROUP
WG2012684WILMINK GROUP
WG2196557WILMINK GROUP
WG2203419WILMINK GROUP
BOS0001109344WOODAUTO
SEG0001109344WOODAUTO
SEG0001109345WOODAUTO
STR50056WOODAUTO
WOOSTR22003WOODAUTO
WOOSTR22051WOODAUTO
WOOSTR22099WOODAUTO
WOOSTR50056WOODAUTO
WOOSTRB014WOODAUTO
WOOSTRB014ANWOODAUTO

Brand	Model	Type	Year
ALFA ROMEO	AR 8 Van (280_) 2.4 D (280)	8140.61.200	04.1978 - 08.1986
ALFA ROMEO	AR 8 Van (280_) 2.5 D (280)	8144.67.220	09.1986 - 12.1989
ALFA ROMEO	AR 8 Platform/Chassis (280_) 2.5 D (280)	8144.67.220	09.1986 - 12.1989
FIAT	CAMPAGNOLA (110_) 2.4 D	8144.61.200	06.1974 - 10.1989
IVECO	DAILY II Van 2.5 4x4	8140.27S	11.1989 - 05.1996
IVECO	DAILY III Van 2.8 CNG	8149.03	05.1999 - 07.2007
IVECO	DAILY II Van 30-10	8140.23	01.1997 - 05.1999
IVECO	DAILY II Platform/Chassis 30-10 (15011131, 15011231)	8140.23	01.1998 - 05.1999
IVECO	DAILY II Van 30-10 C	8140.23	01.1997 - 05.1999
IVECO	DAILY I Platform/Chassis 30-8 (10011131, 10011132, 10011231, 10011232, 10011237,...	8140.61.200	01.1978 - 12.1989
IVECO	DAILY II Platform/Chassis 30-8 (10011131, 10011132, 10011231, 10011232, 10011237,...	8140.63	09.1998 - 05.1999
IVECO	DAILY II Platform/Chassis 30-8 (10011131, 10011132, 10011231, 10011232, 10011237,...	8140.67F.	01.1992 - 08.1998
IVECO	DAILY I Van 30-8 (10014131, 10014132, 10014137, 10014231, 10014232,...	8140.61.200	01.1978 - 12.1989
IVECO	DAILY II Platform/Chassis 30-8 (12910211, 12911111, 12911112, 12911117, 12911131,...	8140.07	01.1992 - 08.1998
IVECO	DAILY II Platform/Chassis 30-8 (12910211, 12911111, 12911112, 12911117, 12911131,...	8140.67F.	01.1992 - 08.1998
IVECO	DAILY II Van 30-8 (12914111, 12914112, 12914117, 12914131, 12914137,...	8140.07	01.1989 - 08.1998
IVECO	DAILY II Van 30-8 (12914111, 12914112, 12914117, 12914131, 12914137,...	8140.67F.	01.1989 - 08.1998
IVECO	DAILY II Platform/Chassis 30-8 (14911111, 14911117, 14911211, 14911215, 14911217,...	8140.63	09.1998 - 05.1999
IVECO	DAILY II Van 30-8 (14914111, 14914117, 14914211, 14914217, 14915111,...	8140.63	09.1998 - 05.1999
IVECO	DAILY II Van 30-8 (14914111, 14914117, 14914211, 14914217, 14915111,...	8140.67F.	01.1989 - 08.1998
IVECO	DAILY II Van 30-8 V (14914111, 14914117, 14914211, 14914217, 14915111...	8140.63	09.1998 - 05.1999
IVECO	DAILY III Van 35 S 13 V,35 C 13 V	8140.43S	05.1999 - 07.2007
IVECO	DAILY III Platform/Chassis 35 S 13,35 C 13	8140.43S	05.1999 - 04.2006
IVECO	DAILY I Platform/Chassis 35-10 (10310311, 10311111, 10311112, 10311117, 10311211,...	8140.21.200	01.1985 - 12.1989
IVECO	DAILY I Van 35-10 (10314204, 10314211, 10314212, 10314217, 10314411,...	8140.21.200	01.1985 - 12.1989
IVECO	DAILY II Platform/Chassis 35-10 (12971112, 12971212, 12971312, 12971317, 12976112,...	8140.97	01.1989 - 12.1996
IVECO	DAILY II Van 35-10 (12974212, 12974217, 13014111, 13014131, 13014204,...	8140.47R	01.1989 - 08.1998
IVECO	DAILY II Van 35-10 (12974212, 12974217, 13014111, 13014131, 13014204,...	8140.97	01.1989 - 08.1998
IVECO	DAILY II Platform/Chassis 35-10 (13810217, 13810312, 13810417, 13811112, 13811212,...	8140.47R	01.1989 - 12.1996
IVECO	DAILY II Platform/Chassis 35-10 (15030111, 15030211, 15030311, 15031111, 15031117,...	8140.23	01.1996 - 05.1999
IVECO	DAILY II Van 35-10 (15034111, 15034204, 15034211, 15034215, 15034217,...	8140.23	01.1996 - 05.1999
IVECO	DAILY II Van 35-12	8140.43.	02.1995 - 05.1999
IVECO	DAILY II Platform/Chassis 35-12 (13110131, 13110211, 13110231, 13110311, 13110312,...	8140.47	01.1990 - 04.1996
IVECO	DAILY II Platform/Chassis 35-12 (13110131, 13110211, 13110231, 13110311, 13110312,...	8140.47S	01.1990 - 04.1996
IVECO	DAILY II Van 35-12 (13114131, 13114204, 13114211, 13114212, 13114217,...	8140.47	01.1990 - 04.1996
IVECO	DAILY II Van 35-12 (13114131, 13114204, 13114211, 13114212, 13114217,...	8140.47S	01.1990 - 04.1996
IVECO	DAILY II Platform/Chassis 35-12 (15130311, 15130411, 15131111, 15131204, 15131211,...	8140.43.	05.1996 - 05.1999
IVECO	DAILY II Platform/Chassis 35-12 K (15130311, 15130411, 15131111, 15131204,...	8140.43.	09.1996 - 08.1998
IVECO	DAILY I Platform/Chassis 35-8 (10031131, 10031132, 10031137, 10031224, 10031231,...	8140.61.200	01.1978 - 12.1989
IVECO	DAILY I Van 35-8 (10034131, 10034132, 10034137, 10034224, 10034231,...	8140.61.200	01.1978 - 12.1989
IVECO	DAILY II Platform/Chassis 35-8 (12931102, 12931104, 12931111, 12931112, 12931117,...	8140.07	01.1989 - 08.1998
IVECO	DAILY II Platform/Chassis 35-8 (12931102, 12931104, 12931111, 12931112, 12931117,...	8140.67F.	01.1989 - 08.1998
IVECO	DAILY II Van 35-8 (12934104, 12934111, 12934112, 12934117, 12934124,...	8140.07	01.1991 - 08.1998
IVECO	DAILY II Van 35-8 (12934104, 12934111, 12934112, 12934117, 12934124,...	8140.67F.	01.1991 - 08.1998
IVECO	DAILY II Platform/Chassis 35-8 (14930304, 14931104, 14931111, 14931115, 14931204,...	8140.63	09.1998 - 05.1999
IVECO	DAILY II Van 35-8 (14934104, 14934111, 14934204, 14934205, 14934211,...	8140.63	09.1998 - 05.1999
IVECO	DAILY III Platform/Chassis 40 C 13	8140.43S	05.1999 - 04.2006
IVECO	DAILY I Platform/Chassis 40-10 (12611111, 12611112, 12611115, 12611211, 12611215,...	8140.27	01.1985 - 12.1989
IVECO	DAILY I Bus 40-10 (12615111, 12615112, 12615115)	8140.27	01.1985 - 12.1989
IVECO	DAILY II Van 40-10 4x4 (15214104, 15214111, 15214117, 15215111)	8140.23	01.1997 - 05.1999
IVECO	DAILY II Van 40-10 V	8140.27S	01.1990 - 04.1996
IVECO	DAILY I Van 40-10 V (12614111, 12614112, 12614115, 12614117)	8140.27	01.1985 - 12.1989
IVECO	DAILY II Platform/Chassis 40-10 W 4x4 (13210111, 13210112, 13210211, 13210212,...	8140.27S	01.1990 - 01.1997
IVECO	DAILY II Platform/Chassis 40-10 W 4x4 (15211104, 15211105, 15211111, 15211115,...	8140.23	01.1997 - 05.1999
IVECO	DAILY I Platform/Chassis 40-8	8140.61.200	01.1983 - 06.1989
IVECO	DAILY II Platform/Chassis 40-8 (12950304, 12951112, 12951131, 12951135, 12951211,...	8140.07	01.1990 - 01.1996
IVECO	DAILY II Van 40-8 (12954211, 12954212, 12954215, 12954231)	8140.07	01.1990 - 01.1996
IVECO	DAILY I Van 40-8 V	8140.61.200	01.1983 - 06.1989
IVECO	DAILY I Platform/Chassis 45-10 (10331211, 10331212, 10331217, 10331304, 10331311,...	8140.21.200	01.1985 - 12.1989
IVECO	DAILY II Platform/Chassis 45-10 (13031204, 13031211, 13031212, 13031224, 13031231,...	8140.27S	01.1989 - 04.1996
IVECO	DAILY I Van 45-10 V (10334204, 10334211, 10334212, 10334217,...	8140.21.200	01.1985 - 12.1989
IVECO	DAILY II Van 45-10 V (13034204, 13034211, 13034212, 13034224,...	8140.27S	01.1989 - 04.1996
IVECO	DAILY I Platform/Chassis 49-10 (10350211, 10350304, 10350311, 10350404, 10350411,...	8140.21.200	01.1985 - 12.1989
IVECO	DAILY II Platform/Chassis 49-10 (13050211, 13050231, 13050304, 13050311, 13050331,...	8140.27S	01.1989 - 04.1996
IVECO	DAILY II Platform/Chassis 49-10 (15050304, 15050404, 15050411, 15051204, 15051211,...	8140.23	05.1996 - 05.1999
IVECO	DAILY II Van 49-10 (15054204, 15054211, 15054215, 15054217, 15054224,...	8140.23	01.1996 - 12.1999
IVECO	DAILY I Van 49-10 V (10354204, 10354211, 10354212, 10354217,...	8140.21.200	01.1985 - 12.1989
IVECO	DAILY II Van 49-10 V (13054204, 13054211, 13054212, 13054215,...	8140.27S	01.1989 - 04.1996
IVECO	DAILY II Platform/Chassis 49-12 (13130211, 13130231, 13130304, 13130311, 13130312,...	8140.47	06.1990 - 04.1996
IVECO	DAILY II Platform/Chassis 49-12 (13130211, 13130231, 13130304, 13130311, 13130312,...	8140.47S	06.1990 - 04.1996
IVECO	DAILY II Platform/Chassis 49-12 (15150211, 15150311, 15150404, 15150411, 15151204,...	8140.43.	05.1996 - 05.1999
IVECO	DAILY II Van 49-12 V (13134124, 13134204, 13134211, 13134212,...	8140.47	06.1990 - 04.1996
IVECO	DAILY II Van 49-12 V (13134124, 13134204, 13134211, 13134212,...	8140.47S	06.1990 - 04.1996
IVECO	DAILY II Van 49-12 V (15154204, 15154211, 15154215, 15154217,...	8140.43.	05.1996 - 05.1999
IVECO	DAILY III Platform/Chassis 50 C 11 Natural Power (CNG)	8149.03	05.1999 - 04.2006
IVECO	DAILY III Bus 50 C 11 Natural Power (CNG)	8149.03	05.2002 - 05.2006
IVECO	DAILY III Platform/Chassis 50 C 13	8140.43S	05.1999 - 04.2006
IVECO	DAILY II Platform/Chassis 59-12 (13150204, 13150211, 13150231, 13150311, 13150312,...	8140.47	05.1991 - 04.1996
IVECO	DAILY II Platform/Chassis 59-12 (13150204, 13150211, 13150231, 13150311, 13150312,...	8140.47S	05.1991 - 04.1996
IVECO	DAILY II Platform/Chassis 59-12 (15170211, 15170304, 15170311, 15170504, 15170511,...	8140.43.	05.1996 - 05.1999
IVECO	DAILY II Van 59-12 V (13154404, 13154411, 13154412, 13154417,...	8140.47	05.1991 - 04.1996
IVECO	DAILY II Van 59-12 V (13154404, 13154411, 13154412, 13154417,...	8140.47S	05.1991 - 04.1996
IVECO	DAILY II Van 59-12 V (15174404, 15174411, 15174415, 15174417)	8140.43.	05.1996 - 05.1999
IVECO	DAILY II Bus A 40-10 (94139111, 94139131, 94139311, 94139315,...	8140.27S	01.1991 - 12.1996
IVECO	DAILY II Bus A 40-10 (95719111, 95719131, 95719311, 95719315,...	8140.23	09.1996 - 05.1999
IVECO	DAILY II Bus A 40-12 (95819311, 95819315, 95819317, 95819331)	8140.43.	05.1996 - 05.1999
IVECO	DAILY II Bus A 45-10 (94159111, 94159131, 94159211, 94159311,...	8140.27S	01.1991 - 04.1996
IVECO	DAILY II Bus A 45-10 (95739111, 95739131, 95739311, 95739317,...	8140.23	05.1996 - 05.1999
IVECO	DAILY II Bus A 45-12 (94179211, 94179231, 94179311, 94179317,...	8140.47	06.1990 - 04.1996
IVECO	DAILY II Bus A 45-12 (94179211, 94179231, 94179311, 94179317,...	8140.47S	06.1990 - 04.1996
IVECO	DAILY II Bus A 45-12 (95839211, 95839231, 95839311, 95839317,...	8140.43.	05.1996 - 05.1999
IVECO	DAILY II Bus A 49-10 (94719304, 94719324)	8140.27S	01.1990 - 01.1996
