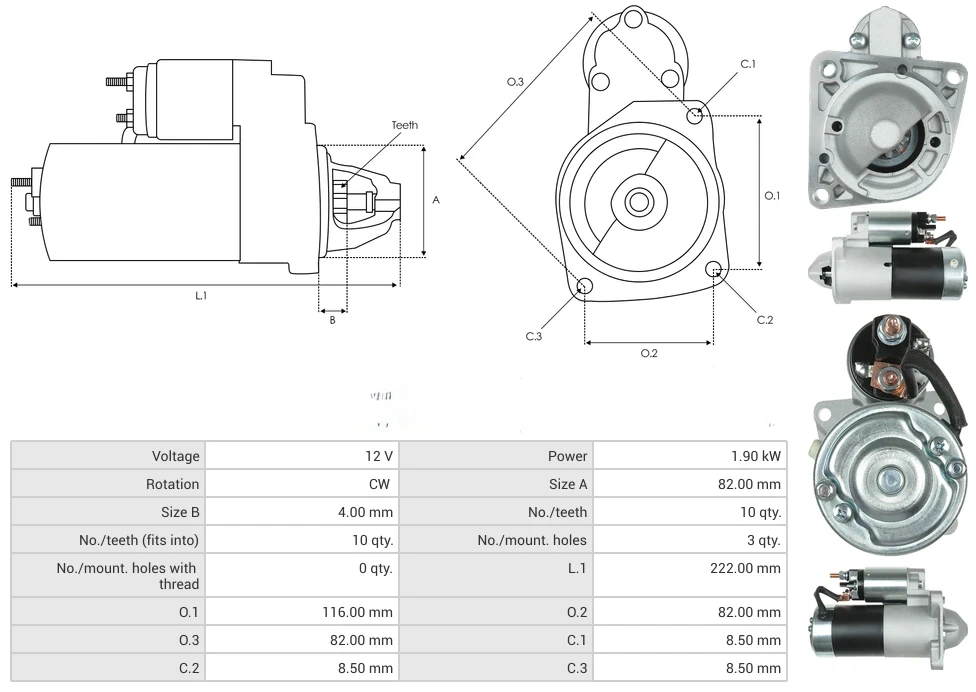

Starters Voltage [ V ] 12 Power [ kW ] 1.90 Rotation CW Size A [ mm ] 82.00 Size B [ mm ] 4.00 No./teeth [ qty. ] 10 No./teeth (fits into) [ qty. ] 10 No./mount. holes [ qty. ] 3 No./mount. holes with thread [ qty. ] 0 L.1 [ mm ] 222.00 O.1 [ mm ] 116.00 O.2 [ mm ] 82.00 O.3 [ mm ] 82.00 C.1 [ mm ] 8.50 C.2 [ mm ] 8.50 C.3 [ mm ] 8.50
S5042AS-PLList UD12056SAS-PL 0986022061BOSCH F042001089BOSCH F042S01089BOSCH F042S01089FDBBOSCH 114058CARGO F032114058CARGO DRS3988DELCO DRS3988NDELCO DRS3988XDELCO DS5098DELCO DS5098NDELCO RAS34099DELCO 8EA012527-641HELLA 8EA738259-091HELLA 944280802040MAGNETI MARELLI MRS80204MAGNETI MARELLI M001T30171MITSUBISHIList M001T30172MITSUBISHIList M001T30173MITSUBISHIList M001T30173AMMITSUBISHI M1T30171MITSUBISHIList M1T30172MITSUBISHIList M1T30173MITSUBISHIList M1T30173AMMITSUBISHI 1202283OPEL 1202489OPEL 1202594OPEL 55352882OPEL 55585238OPEL 6202073OPEL 6202074OPEL 93169020OPEL 93169021OPEL 95520321OPEL 9562203OPEL R1540030OPEL 458767VALEO PRSS1233EFFE STRS1233EFFE CGB-23988AINDE ANM16208XANDEL ASM1301APEC AEY2173AUTOELECTRO NEY2173AUTOELECTRO STA0343RBOVEZ CST35172ASCASCO CST35172GSCASCO 3143CEVAM 12020EAI STR5107ELECTROLOG 25-3347ELSTOCK EZ0403ELTA AUTOMOTIVE 220580ERA SG0342GHIBAUDI GST30171MI-RGPARTS GST30172-AGPARTS CS1428HC PARTS 42001171HERTH+BUSS STM1428KRAUF 101428KUHNER 101428MKUHNER 336535LOGISTIK LRS02173LUCAS LRS2173LUCAS NPANSM1301NAPA 88213293POWERMAX 130.541.103.130PSH 130.541.103.265PSH 130.541.103.370PSH 130.541.103.415PSH S129.904PSH 20437271BNREAL 20437271OEREAL RNLM1T30171RNL STM570ROLLCO 6035172.0SANDO 6035172.1SANDO S12MH0064SIDAT S12MH0064A2SIDAT MAV371720SIOM STX200011STARDAX STX200011RSTARDAX STX200045STARDAX STX200045RSTARDAX SX2165STARLINE 33173NWAI / TRANSPO MITM1T30173WOODAUTO STR71114WOODAUTO
Brand Model Type Year CADILLAC BLS Wagon 1.9 D Z19DTH 12.2007 - CADILLAC BLS 1.9 D Z19DTH 04.2006 - CADILLAC BLS 1.9 D Z19DTR 12.2007 - CADILLAC BLS Wagon 1.9 D Z19DTR 12.2007 - OPEL VECTRA C Estate (Z02) 1.9 CDTI (F35) Z19DTH 04.2004 - 08.2008 OPEL SIGNUM Hatchback (Z03) 1.9 CDTI (F48) Z19DTH 04.2004 - 02.2008 OPEL VECTRA C GTS (Z02) 1.9 CDTI (F68) Z19DTH 04.2004 - 08.2008 OPEL VECTRA C (Z02) 1.9 CDTI (F69) Z19DTH 04.2004 - 08.2008 OPEL ASTRA H GTC (A04) 1.9 CDTi (L08) Z19DTH 03.2005 - 10.2010 OPEL ASTRA H Estate (A04) 1.9 CDTI (L35) Z19DTH 09.2004 - 10.2010 OPEL ASTRA H (A04) 1.9 CDTI (L48) Z19DTH 09.2004 - 10.2010 OPEL ASTRA H TwinTop (A04) 1.9 CDTi (L67) Z19DTH 09.2005 - 10.2010 OPEL ASTRA H Estate Van (L70) 1.9 CDTI (L70) Z19DTH 09.2004 - 10.2010 OPEL ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75) Z19DT 07.2005 - 04.2015 OPEL ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75) Z19DTH 07.2005 - 04.2015 OPEL ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75) Z19DTL 07.2005 - 12.2010 OPEL ASTRA H GTC (A04) 1.9 CDTi 16V (L08) Z19DTJ 03.2005 - 10.2010 OPEL ASTRA H Estate (A04) 1.9 CDTI 16V (L35) Z19DTJ 08.2004 - 10.2010 OPEL ASTRA H (A04) 1.9 CDTI 16V (L48) Z19DTJ 04.2004 - 10.2010 OPEL ASTRA H Estate Van (L70) 1.9 CDTI 16V (L70) Z19DTJ 08.2004 - 10.2010 OPEL ZAFIRA B Box Body/MPV (A05) 1.9 CDTI VAN (M75) Z19DTH 07.2005 - 04.2015 OPEL ASTRA J GTC 2.0 BiTurbo CDTI (08) A20DTR 10.2013 - 06.2015 OPEL INSIGNIA A Sports Tourer (G09) 2.0 Biturbo CDTI (35) A20DTR 07.2008 - 03.2017 OPEL INSIGNIA A Sports Tourer (G09) 2.0 Biturbo CDTI (35) A20DTR 01.2012 - 06.2015 OPEL ASTRA J Sports Tourer (P10) 2.0 BiTurbo CDTI (35) A20DTR 09.2012 - 10.2015 OPEL ASTRA J (P10) 2.0 BiTurbo CDTI (68) A20DTR 09.2012 - 10.2015 OPEL INSIGNIA A (G09) 2.0 Biturbo CDTI (68) A20DTR 01.2012 - 03.2017 OPEL INSIGNIA A (G09) 2.0 Biturbo CDTI (68) A20DTR 07.2008 - 12.2011 OPEL INSIGNIA A Saloon (G09) 2.0 Biturbo CDTI (69) A20DTR 07.2008 - 12.2011 OPEL INSIGNIA A Saloon (G09) 2.0 Biturbo CDTI (69) A20DTR 01.2012 - 03.2017 OPEL ZAFIRA TOURER C (P12) 2.0 BiTurbo CDTI (75) A20DTR 01.2013 - OPEL INSIGNIA A Sports Tourer (G09) 2.0 Biturbo CDTI 4x4 (35) A20DTR 07.2008 - 03.2017 OPEL INSIGNIA A Sports Tourer (G09) 2.0 Biturbo CDTI 4x4 (35) A20DTR 01.2012 - 06.2015 OPEL INSIGNIA A (G09) 2.0 Biturbo CDTI 4x4 (68) A20DTR 01.2012 - 03.2017 OPEL INSIGNIA A (G09) 2.0 Biturbo CDTI 4x4 (68) A20DTR 05.2009 - 12.2011 OPEL INSIGNIA A Saloon (G09) 2.0 Biturbo CDTI 4x4 (69) A20DTR 07.2008 - 12.2011 OPEL INSIGNIA A Saloon (G09) 2.0 Biturbo CDTI 4x4 (69) A20DTR 01.2012 - 03.2017 OPEL ASTRA J GTC 2.0 CDTI (08) A20DTH 01.2012 - 06.2015 OPEL ASTRA J GTC 2.0 CDTI (08) A20DTH 01.2012 - 10.2015 OPEL INSIGNIA A Sports Tourer (G09) 2.0 CDTI (35) A20DT 07.2008 - 06.2015 OPEL INSIGNIA A Sports Tourer (G09) 2.0 CDTI (35) A20DTC 07.2008 - 06.2013 OPEL ASTRA J Sports Tourer (P10) 2.0 CDTI (35) A20DTH 10.2010 - 10.2015 OPEL INSIGNIA A Sports Tourer (G09) 2.0 CDTI (35) A20DTH 07.2008 - 06.2015 OPEL ASTRA J Estate Van (P10) 2.0 CDTi (35) A20DTH 10.2012 - 10.2015 OPEL ASTRA J Sports Tourer (P10) 2.0 CDTI (35) A20DTH 08.2011 - 10.2015 OPEL INSIGNIA A Sports Tourer (G09) 2.0 CDTI (35) A20DTH 07.2013 - 06.2015 OPEL INSIGNIA A Sports Tourer (G09) 2.0 CDTI (35) A20DTJ 07.2008 - 06.2015 OPEL INSIGNIA A Sports Tourer (G09) 2.0 CDTI (35) A20DTL 07.2008 - 06.2013 OPEL INSIGNIA A Country Tourer (G09) 2.0 CDTi (47) A20DT 07.2008 - 03.2017 OPEL INSIGNIA A Country Tourer (G09) 2.0 CDTi (47) A20DTH 07.2014 - 03.2017 OPEL INSIGNIA A Country Tourer (G09) 2.0 CDTi (47) A20DTJ 07.2008 - 03.2017 OPEL INSIGNIA A (G09) 2.0 CDTI (68) A20DT 07.2008 - 03.2017 OPEL INSIGNIA A (G09) 2.0 CDTI (68) A20DTC 07.2008 - 03.2017 OPEL INSIGNIA A (G09) 2.0 CDTI (68) A20DTH 07.2013 - 03.2017 OPEL INSIGNIA A (G09) 2.0 CDTI (68) A20DTH 07.2008 - 03.2017 OPEL ASTRA J (P10) 2.0 CDTI (68) A20DTH 06.2011 - 10.2015 OPEL ASTRA J (P10) 2.0 CDTI (68) A20DTH 09.2009 - 10.2015 OPEL INSIGNIA A (G09) 2.0 CDTI (68) A20DTH 07.2008 - 03.2017 OPEL INSIGNIA A (G09) 2.0 CDTI (68) A20DTJ 07.2008 - 03.2017 OPEL INSIGNIA A (G09) 2.0 CDTI (68) A20DTL 07.2008 - 03.2017 OPEL INSIGNIA A Saloon (G09) 2.0 CDTI (69) A20DT 07.2008 - 03.2017 OPEL INSIGNIA A Saloon (G09) 2.0 CDTI (69) A20DTC 07.2008 - 03.2017 OPEL INSIGNIA A Saloon (G09) 2.0 CDTI (69) A20DTH 07.2013 - 03.2017 OPEL INSIGNIA A Saloon (G09) 2.0 CDTI (69) A20DTH 07.2008 - 03.2017 OPEL INSIGNIA A Saloon (G09) 2.0 CDTI (69) A20DTJ 07.2008 - 03.2017 OPEL INSIGNIA A Saloon (G09) 2.0 CDTI (69) A20DTL 07.2008 - 03.2017 OPEL ZAFIRA TOURER C VAN (P12) 2.0 CDTi (75) A20DT 01.2012 - OPEL ZAFIRA TOURER C (P12) 2.0 CDTi (75) A20DT 10.2011 - OPEL ZAFIRA TOURER C VAN (P12) 2.0 CDTi (75) A20DTH 01.2013 - OPEL ZAFIRA TOURER C (P12) 2.0 CDTi (75) A20DTH 10.2011 - OPEL ZAFIRA TOURER C (P12) 2.0 CDTi (75) A20DTL 10.2011 - OPEL ZAFIRA TOURER C VAN (P12) 2.0 CDTi (75) A20DTL 01.2013 - OPEL ZAFIRA TOURER C (P12) 2.0 CDTi (75) B20DTJ 10.2011 - OPEL ZAFIRA TOURER C (P12) 2.0 CDTi (75) D20DTJ 10.2011 - OPEL ZAFIRA TOURER C (P12) 2.0 CDTi (75) Y20DTJ 10.2011 - OPEL ZAFIRA TOURER C VAN (P12) 2.0 CDTi (75) Y20DTJ 01.2012 - OPEL ZAFIRA TOURER C VAN (P12) 2.0 CDTi (75) Z20DTJ 01.2012 - OPEL ZAFIRA TOURER C (P12) 2.0 CDTi (75) Z20DTJ 10.2011 - OPEL INSIGNIA A Sports Tourer (G09) 2.0 CDTI 4x4 (35) A20DTH 06.2010 - 06.2015 OPEL INSIGNIA A Sports Tourer (G09) 2.0 CDTI 4x4 (35) A20DTH 07.2013 - 06.2015 OPEL INSIGNIA A Country Tourer (G09) 2.0 CDTi 4x4 (47) A20DTH 09.2013 - 03.2017 OPEL INSIGNIA A Country Tourer (G09) 2.0 CDTi 4x4 (47) A20DTR 09.2013 - 03.2017 OPEL INSIGNIA A (G09) 2.0 CDTI 4x4 (68) A20DTH 06.2010 - 03.2017 OPEL INSIGNIA A (G09) 2.0 CDTI 4x4 (68) A20DTH 07.2013 - 03.2017 OPEL INSIGNIA A Saloon (G09) 2.0 CDTI 4x4 (69) A20DTH 06.2010 - 03.2017 OPEL INSIGNIA A Saloon (G09) 2.0 CDTI 4x4 (69) A20DTH 07.2013 - 03.2017 SAAB 9-3 Estate (E50) 1.9 TiD Z19DT 03.2005 - 02.2015 SAAB 9-3 Convertible (YS3F) 1.9 TiD Z19DT 09.2004 - 02.2015 SAAB 9-3 (YS3F, E79, D79, D75) 1.9 TiD Z19DT 09.2004 - 02.2015 SAAB 9-3 Convertible (YS3F) 1.9 TiD Z19DTH 01.2006 - 02.2015 SAAB 9-5 Estate (YS3E) 1.9 TiD Z19DTH 01.2006 - 12.2009 SAAB 9-3 (YS3F, E79, D79, D75) 1.9 TiD Z19DTH 09.2004 - 02.2015 SAAB 9-5 (YS3E) 1.9 TiD Z19DTH 01.2006 - 12.2009 SAAB 9-3 Estate (E50) 1.9 TiD Z19DTH 03.2005 - 02.2015 SAAB 9-5 Estate (YS3E) 1.9 TiD Z19DTR 01.2007 - 12.2009 SAAB 9-3 Estate (E50) 1.9 TTiD A19DTR 12.2007 - 02.2015 SAAB 9-3 (YS3F, E79, D79, D75) 1.9 TTiD A19DTR 12.2007 - 02.2015 SAAB 9-3 (YS3F, E79, D79, D75) 1.9 TTiD A19DTR 12.2007 - 02.2015 SAAB 9-3 (YS3F, E79, D79, D75) 1.9 TTiD A19DTR 12.2007 - 02.2015 SAAB 9-3 Convertible (YS3F) 1.9 TTiD A19DTR 12.2007 - 02.2015 Brand Model Type Year SAAB 9-3 Convertible (YS3F) 1.9 TTiD A19DTR 12.2007 - 02.2015 SAAB 9-3 Convertible (YS3F) 1.9 TTiD A19DTR 12.2007 - 02.2015 SAAB 9-3 Estate (E50) 1.9 TTiD A19DTR 12.2007 - 02.2015 SAAB 9-3 Convertible (YS3F) 1.9 TTiD Z19DTR 12.2007 - 02.2015 SAAB 9-3 Estate (E50) 1.9 TTiD Z19DTR 12.2007 - 02.2015 SAAB 9-3 (YS3F, E79, D79, D75) 1.9 TTiD Z19DTR 12.2007 - 02.2015 SAAB 9-3X (YS3) 1.9 TTiD AWD A19DTR 02.2009 - 12.2012 SAAB 9-3X (YS3) 1.9 TTiD AWD Z19DTR 02.2009 - 12.2012 SAAB 9-5 (YS3G) 2.0 TiD A20DTH 05.2010 - 01.2012 SAAB 9-5 (YS3G) 2.0 TTiD A20DTR 05.2010 - 01.2012 SAAB 9-5 (YS3G) 2.0 TTiD XWD A20DTR 05.2010 - 01.2012 VAUXHALL Astravan MK V 1.9 CDTi Z19DT 03.2005 - 11.2011 VAUXHALL Zafira MK II 1.9 CDTi Z19DTH 07.2005 - 11.2014 VAUXHALL Astravan MK V 1.9 CDTi Z19DTH 03.2005 - 11.2011 VAUXHALL Astra MK V 1.9 CDTi Z19DTH 01.2004 - 11.2010 VAUXHALL Signum 1.9 CDTi 16V Z19DTH 04.2004 - 03.2008 VAUXHALL Vectra MK II 1.9 CDTi 16V Z19DTH 04.2004 - 05.2009 VAUXHALL Astra MK V 1.9 CDTi 16V Z19DTJ 01.2004 - 05.2009 VAUXHALL Vectra MK II 1.9 CDTi 16V GTS Z19DTH 04.2004 - 07.2008 VAUXHALL Astra MK V 1.9 CDTi Sport Hatch Z19DTH 02.2005 - 11.2010 VAUXHALL Astra MK V 1.9 CDTi Twintop Z19DTH 01.2006 - 11.2010 VAUXHALL Insignia Mk I 2.0 CDTi A20DT 07.2008 - 12.2014 VAUXHALL Astra MK VI 2.0 CDTi A20DTH 10.2010 - VAUXHALL Astra MK VI 2.0 CDTi A20DTH 12.2009 - VAUXHALL Insignia Mk I 2.0 CDTi A20DTH 07.2008 - 05.2017 VAUXHALL Insignia Mk I 2.0 CDTi A20DTJ 07.2008 - 12.2014 VAUXHALL Insignia Mk I 2.0 CDTi 4x4 A20DTH 07.2008 - 05.2017
