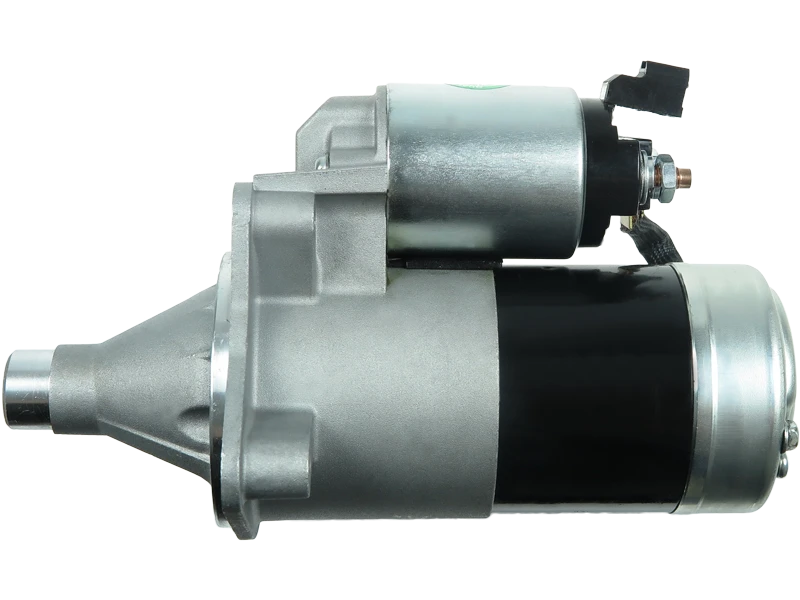

LY-MI100029

  • Detailed Description
  • Reference number
  • Application
Starters
Voltage [ V ]	12
Power [ kW ]	1.40
Rotation	CW

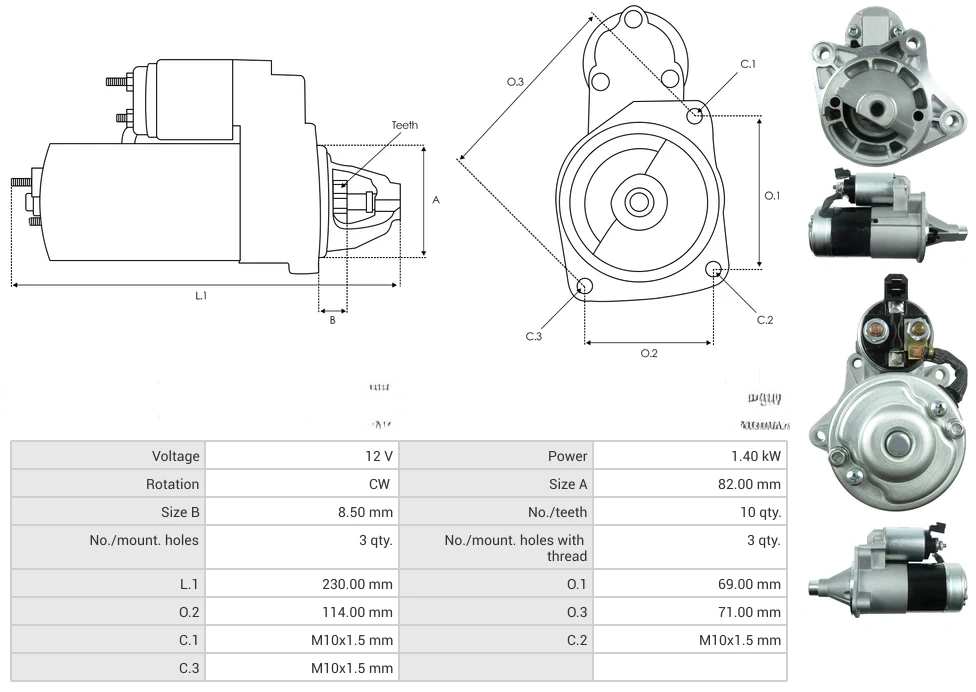

Size A [ mm ]	82.00
Size B [ mm ]	8.50
No./teeth [ qty. ]	10
No./mount. holes [ qty. ]	3
No./mount. holes with thread [ qty. ]	3
L.1 [ mm ]	230.00
O.1 [ mm ]	69.00
O.2 [ mm ]	114.00
O.3 [ mm ]	71.00
C.1 [ mm ]	M10x1.5
C.2 [ mm ]	M10x1.5
C.3 [ mm ]	M10x1.5
112845CARGO
F032112845CARGO
4609011CHRYSLER
DRS0755DELCO
M001T77777MITSUBISHIList
M001T77777ZCMITSUBISHIList
M001T77781MITSUBISHIList
M001T77781ZCMITSUBISHIList
M1T77777MITSUBISHIList
M1T77777ZCMITSUBISHIList
M1T77781MITSUBISHIList
M1T77781ZCMITSUBISHIList
S1166MPRESTOLITE
STRS4313EFFE
STR5421ELECTROLOG
25-3318ELSTOCK
LRS01751LUCAS
LRS1751LUCAS
17461NWAI / TRANSPO
Brand	Model	Type	Year
CHRYSLER	NEW YORKER 3.5 i 24V	F01	04.1993 - 09.1998
CHRYSLER	VISION 3.5 TSi	EGE	09.1993 - 12.1997
CHRYSLER	VISION 3.5 TSi	F00	09.1993 - 12.1997
CHRYSLER	VISION 3.5 TSi	F01	09.1993 - 12.1997
DODGE	INTREPID 3.5	EGE	10.1992 - 12.1998
EAGLE	Vision 3.5		01.1993 - 01.1997
EAGLE	Vision 3.5 ESI		01.1995 - 01.1997
PLYMOUTH	Prowler 3.5		01.1997 - 01.1997
PLYMOUTH	Prowler 3.5		01.1999 - 01.1999
