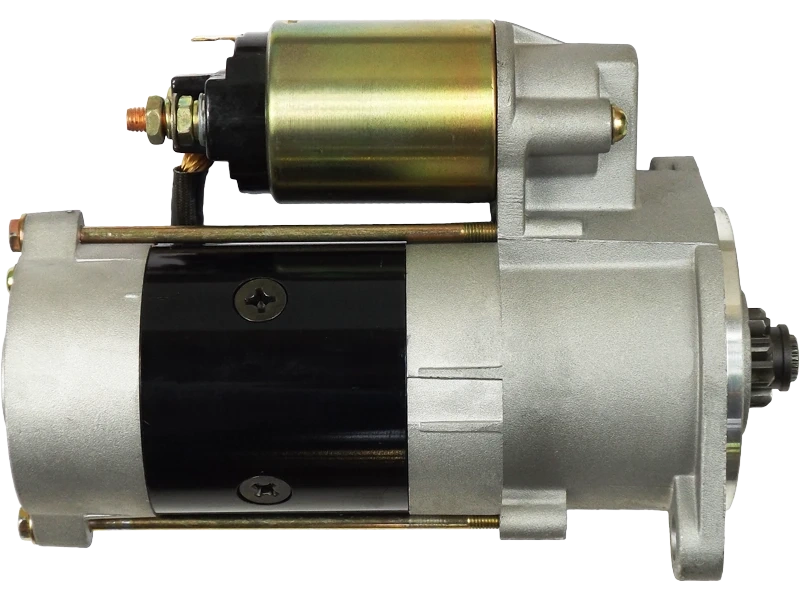

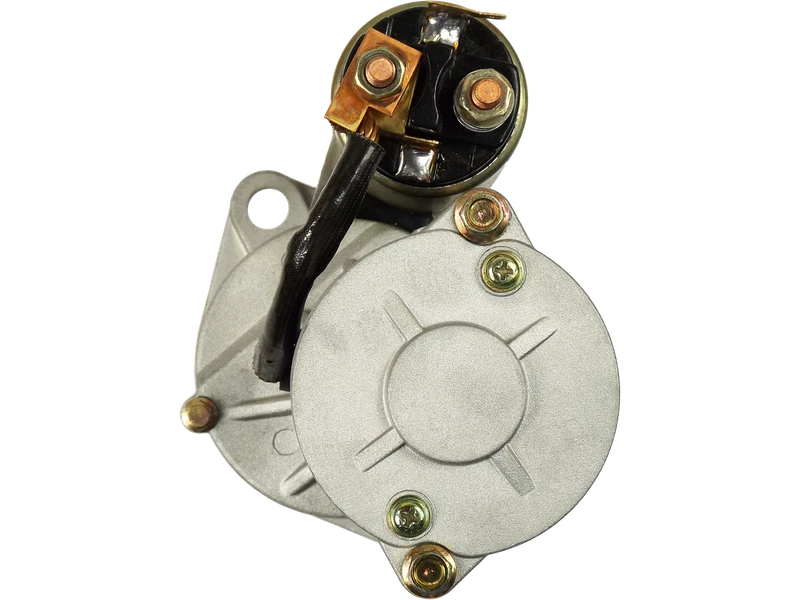

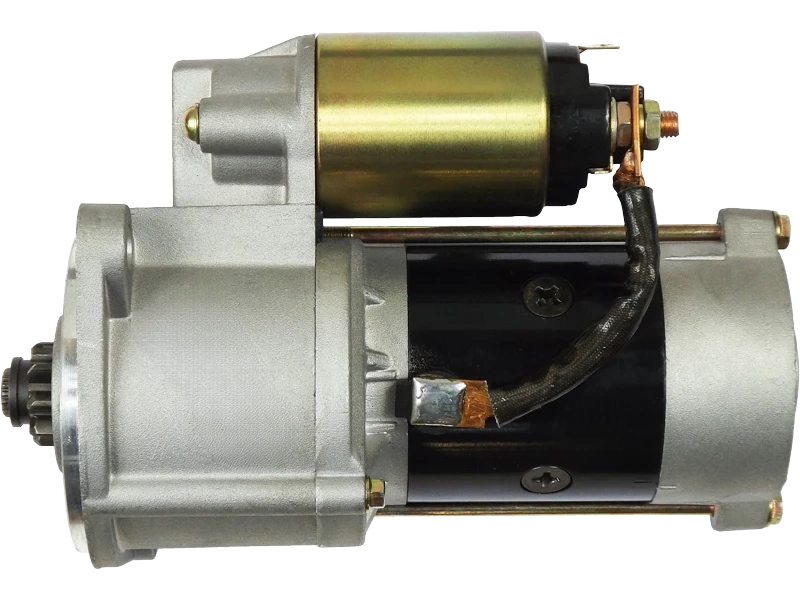

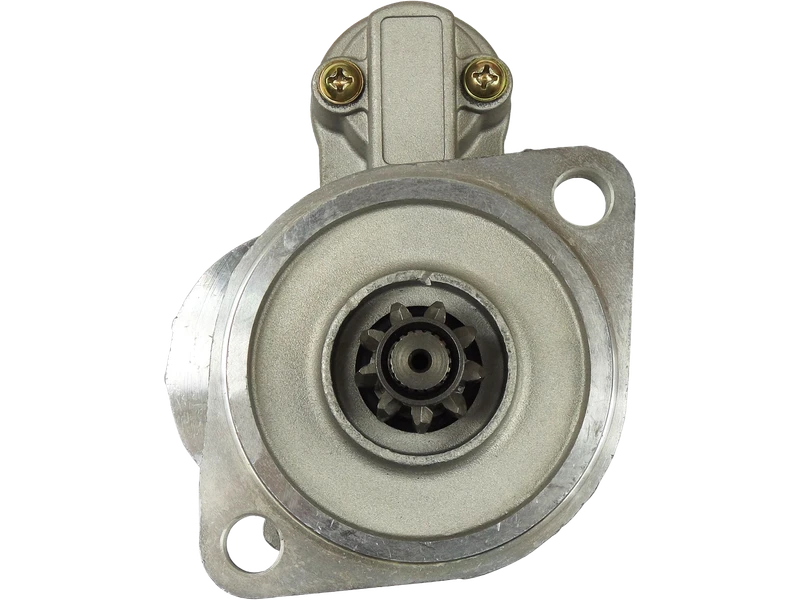

LY-MI200026

  • Detailed Description
  • Reference number
  • Application
Starters
Voltage [ V ]	24
Power [ kW ]	3.20
Rotation	CW

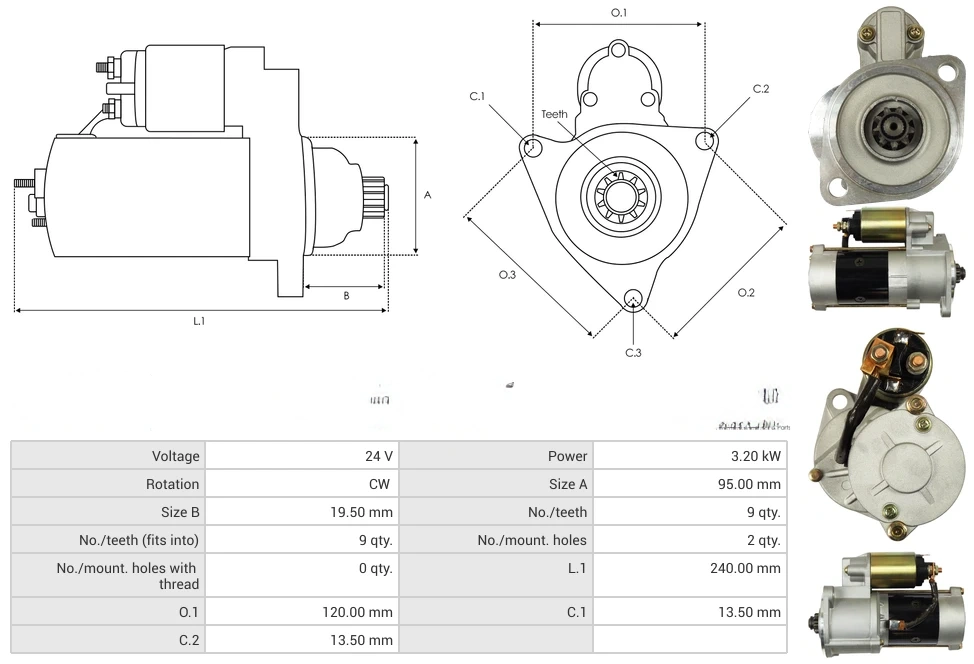

Size A [ mm ]	95.00
Size B [ mm ]	19.50
No./teeth [ qty. ]	9
No./teeth (fits into) [ qty. ]	9
No./mount. holes [ qty. ]	2
No./mount. holes with thread [ qty. ]	0
L.1 [ mm ]	240.00
O.1 [ mm ]	120.00
C.1 [ mm ]	13.50
C.2 [ mm ]	13.50
UD02139SAS-PL
S25-21HITACHI
581001290ISUZU
8943334380ISUZUList
MAV226040SIOM
Brand	Model	Type	Year
ISUZU	ELF 3.3	4BC2	01.1982 - 12.1987
ISUZU	NPR 3.3	4BC2	01.1982 - 12.1987
                                C1990
                                C240
