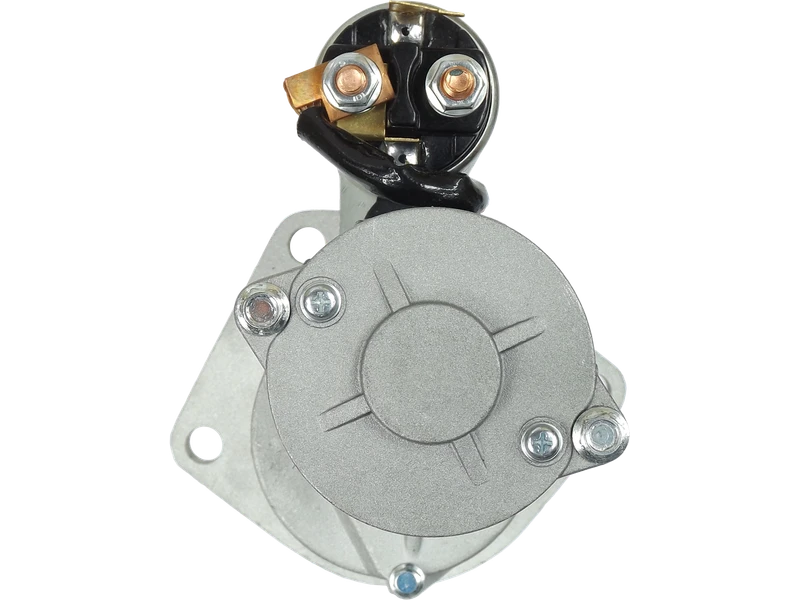

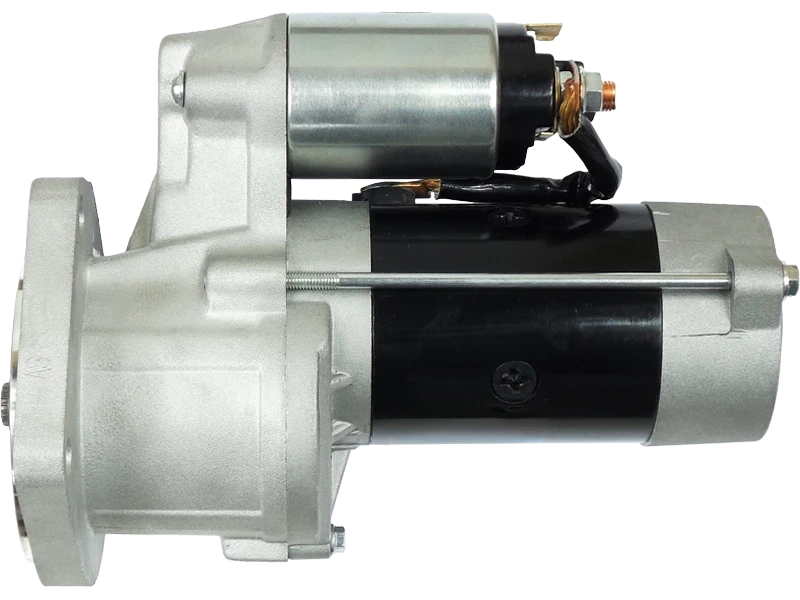

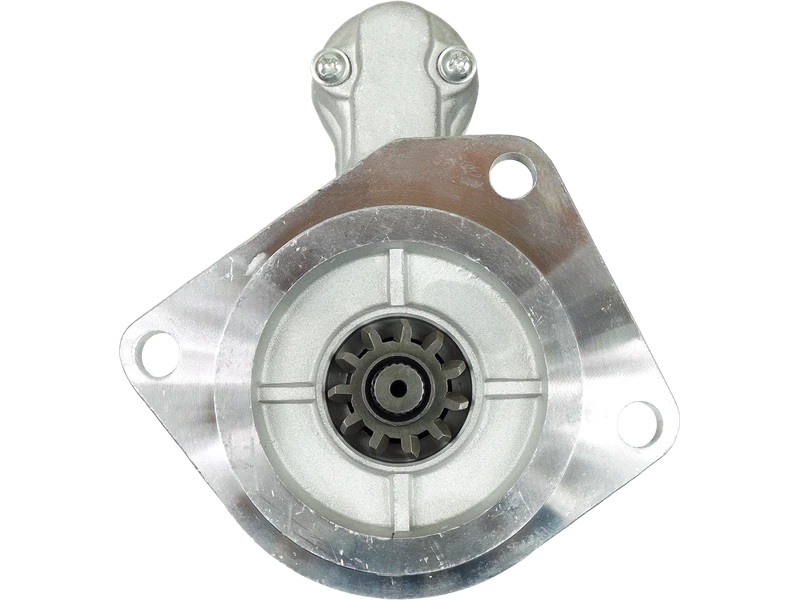

LY-MI200022

  • Detailed Description
  • Reference number
  • Application
Starters

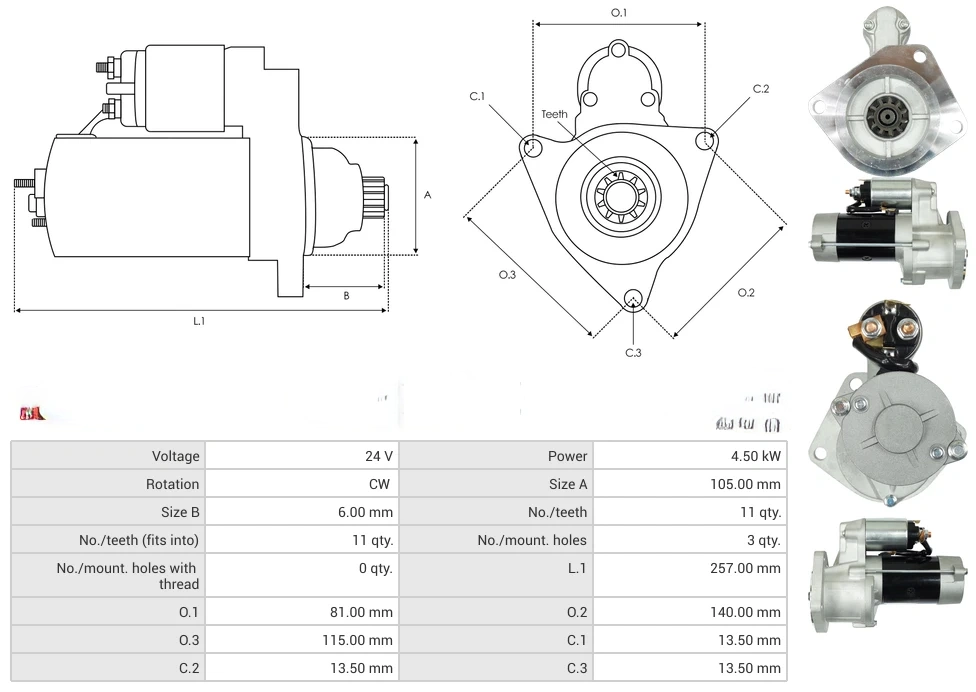

Voltage [ V ]	24
Power [ kW ]	4.50
Rotation	CW
Size A [ mm ]	105.00
Size B [ mm ]	6.00
No./teeth [ qty. ]	11
No./teeth (fits into) [ qty. ]	11
No./mount. holes [ qty. ]	3
No./mount. holes with thread [ qty. ]	0
L.1 [ mm ]	257.00
O.1 [ mm ]	81.00
O.2 [ mm ]	140.00
O.3 [ mm ]	115.00
C.1 [ mm ]	13.50
C.2 [ mm ]	13.50
C.3 [ mm ]	13.50
S2050AS-PLList
UD02122SAS-PL
113191CARGO
F032113191CARGO
23300-6J02HITACHI
23300-6J04HITACHI
S25-158HITACHIList
S25-158AHITACHIList
S25-158BHITACHIList
S25-160HITACHIList
S25158AHITACHIList
23300-06J01NISSAN
23300-06J02NISSANList
23300-06J04NISSANList
23300-34T00NISSANList
CGB-25158AINDE
003-D944ASHIKA
CST20603ASCASCO
STR3110BELECTROLOG
MTD944JAPANPARTS
3D944JAPKO
254138KUHNER
336210LOGISTIK
161.508.113PSH
161.508.113.415PSH
161.508.113.460PSH
S130.990PSH
S148.423PSH
20445306BNREAL
6020603SANDO
MAV226030SIOM
18058NWAI / TRANSPO
18058RWAI / TRANSPO
Brand	Model	Type	Year
NISSAN	PATROL III/2 Hardtop (K260) 4.2 D	TD42	01.1988 - 12.1997
NISSAN	PATROL GR IV (Y60, GR) 4.2 D (CRGY60, KY60, KRY60, WRGY60)	TD42	11.1988 - 06.1997
NISSAN	PATROL GR IV (Y60, GR) 4.2 D 4x4 (CRGY60, VRY60, VRGY60, WRY60, WRGY60)	TD42	07.1992 - 05.1994
